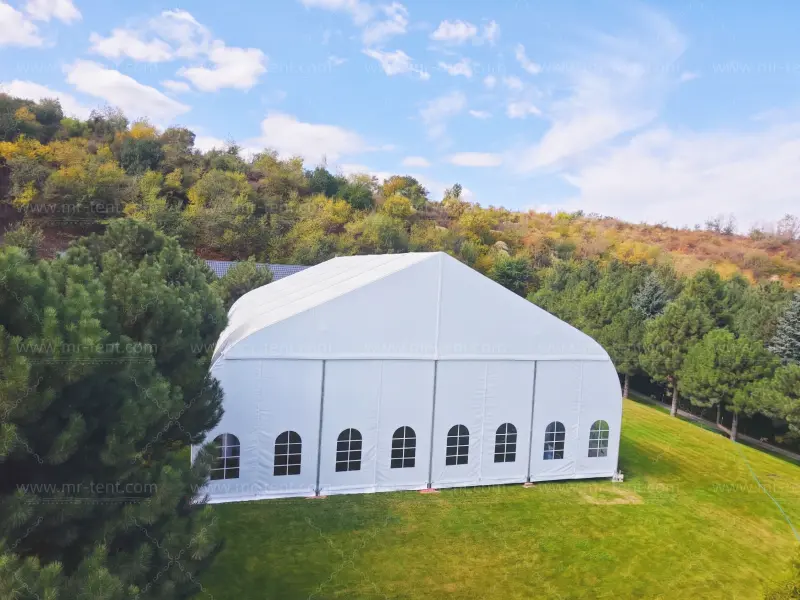

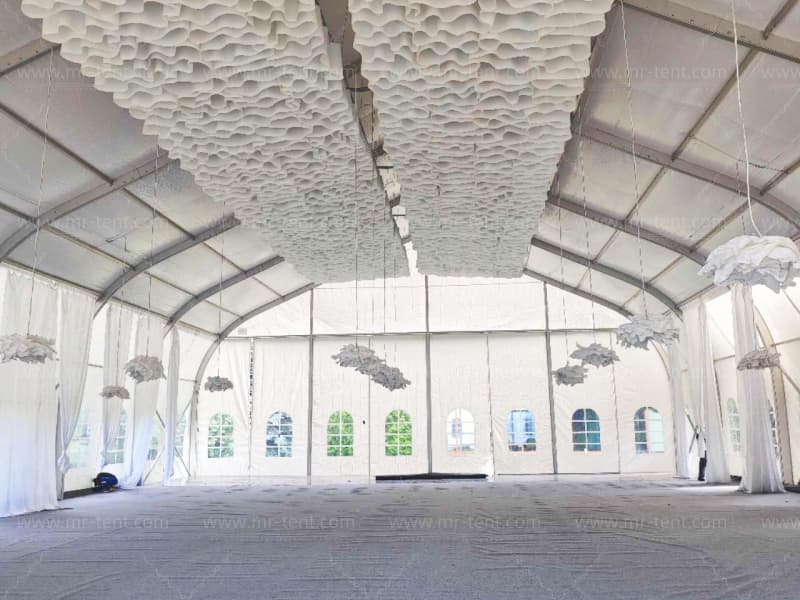

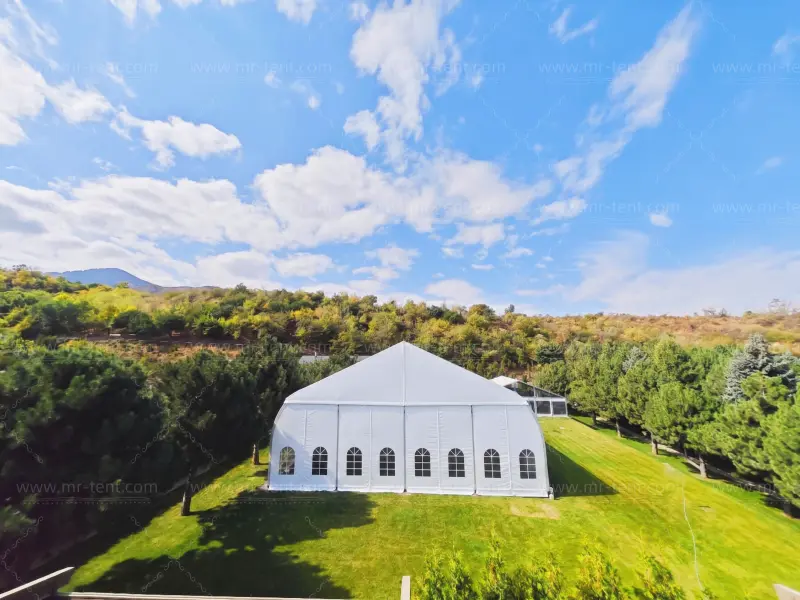

White Curve Tent Large Size Outdoor Event Tent
Meister curve tent is a special shape tent which is widely used for sports, events and hanger function. The tent is with long life span aluminum structure, waterproof fireproof PVC roof and walls. The tent is not only strong and durable, but also nice looking. It can withstand more heavy snow than other shape tent because of its banded aluminum roof beam. It means it can be long time fixed in one place for a long time, even in winter snow time.....
Specifications:
Span width:From 3 meters to 50meters
Length:Unlimited, extended by 3m or 5m each bay
| Type | Width (m) | Bay distance (m) | Ridge height (m) | Main frame profile (mm) |
| MST-3 | 3 | 3 | 3.3 | 48x84x3 |
| MST-6 | 6 | 3 | 3.8 | 48x84x3 |
| MST-8 | 8 | 3 | 4.3 | 48x84x3/48x100x3 |
| MST-10 | 10 | 5 | 4.8 | 48x84x3/48x100x3/68x122x3 |
| MST-12 | 12 | 5 | 5.9 | 68x122x3 |
| MST-15 | 15 | 5 | 7.5 | 108x150x3 |
| MST-18 | 18 | 5 | 8.2 | 108x150x3/112x203x4 |
| MST-20 | 20 | 5 | 8.7 | 112x203x4 |
| MST-25 | 25 | 5 | 9.8 | 112x203x4 |
| MST-30 | 30 | 5 | 11 | 113x259x5 |
Competitive Advantage:
Modular type, the tent can be extended or dismantled to several small tents.
Easy to be assembled and dismantled.
No pole inside, 100% space available.
The aluminum frame will never get rusty with life span more than 15 years.
The PVC cover is waterprof, fireproof with life span 6-8 years.
Can be used in bad circumstance.
Key Attributes:
| Frame part | Main parts: aluminum alloy Spare parts:Durable galvanized steel. |
| All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. | |
| Cover part | The roof and Sidewall cover: double coated PVC fabric. |
| The weight of fabric is from 650g/sqm to 850g/sqm. | |
| Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. | |
| Side wall | PVC wall, glass wall, sandwich panels, ABS panels,etc. |
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
Optional Accessories:
Tent Accessories
-
Flooring Type -
Simple Wooden Flooring -
Carpet Floor -
Rolling Gate -
Sandwich Wall -
ABS Wall -
Glass Wall -
Double Glass Door -
Lighting -
Steel Panel Wall -
Tables & Chairs -
Tables & Chairs
