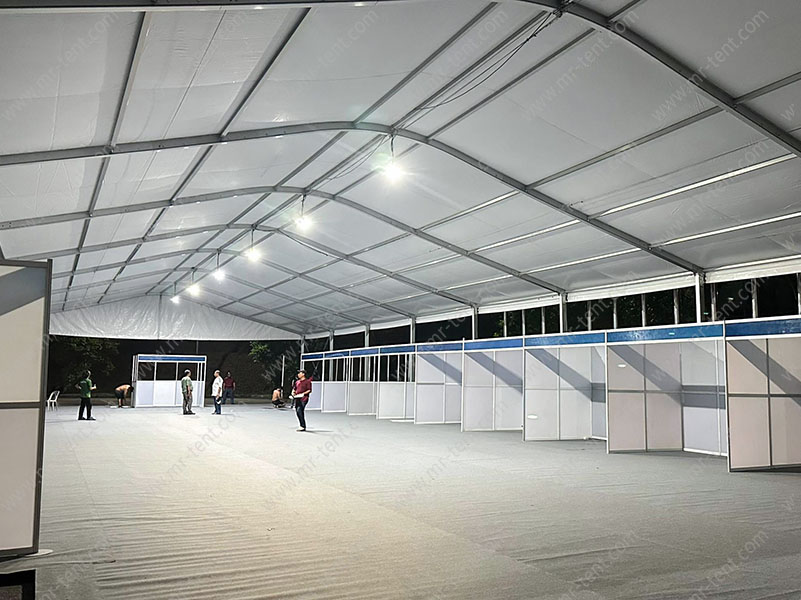

30x35m Marquee Party Tent with Glass Walls
Meister arcum tent is made of high reinforced aluminum frame and waterproof pvc covers. The characteristics of the arcum tent includes a good-looking structure with a beautiful roof line and a lot of space inside the tent. Usually people prefer to use glass walls, ABS walls and sandwich walls on Arch tent so that it can provide a more comfortable environment. With its arch shape, the arcum tent is widely used for outdoor events, temporary showroom and sports.
Specifications:
Span width:From 3 meters to 50meters
Eave height:Standard from 2.5m, 3m, 4m to 5m upon width(or special height per requested)
Length:Unlimited, extended by 3m or 5m each bay
| Type | Width (m) | Bay distance (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) |
| MST-3 | 3 | 3 | 2.5 | 2.8 | 48x84x3 |
| MST-6 | 6 | 3 | 2.5 | 3.2 | 48x84x3 |
| MST-8 | 8 | 3 | 2.5 | 3.6 | 48x84x3/48x100x3 |
| MST-10 | 10 | 3/5 | 2.5 | 3.9 | 48x84x3/48x100x3/68x122x3 |
| MST-12 | 12 | 5 | 3 | 4.7 | 68x122x3 |
| MST-15 | 15 | 5 | 3 | 5 | 108x150x3 |
| MST-18 | 18 | 5 | 4 | 6.5 | 108x150x3/112x203x3 |
| MST-20 | 20 | 5 | 4 | 6.8 | 112x203x4 |
| MST-25 | 25 | 5 | 4 | 7.3 | 112x203x4 |
| MST-30 | 30 | 5 | 4 | 8 | 113x259x5 |
| The length can be extended by 3m bay such as 6m,9m,12m,15m... 5m bay such as 10m,15m,20m,25m,30m... | |||||
Competitive Advantage:
Modular type, the tent can be extended or dismantled to several small tents.
Easy to be assembled and dismantled.
No pole inside, 100% space available.
The aluminum frame will never get rusty with life span more than 15 years.
The PVC cover is waterprof, fireproof with life span 6-8 years.
Can be used in bad circumstance.
Key Attributes:
| Frame part | Main parts: aluminum alloy Spare parts:Durable galvanized steel. |
| All aluminum components are technically anodized and all steel parts are well hot-dip galvanized. | |
| Cover part | The roof and sidewall cover: double coated PVC fabric. |
| The weight of fabric is from 650g/sqm to 850g/sqm. | |
| Waterproof, UV resistant, flame retardant to DIN4102, M2 and Grade B1, tear resistant, self-cleaning ability, etc. | |
| Side wall | PVC wall, glass wall, sandwich panels, ABS panels,etc. |
| Fabric color option | White, transparent, green, yellow, red, blue, gray, black and customized |
| Applications | Wedding, events, temporary warehouse & workshop, exhibitions, church and other outdoor activities |
| Ground Situations | Grassland, sandy land, cement ground, marble ground, etc. |
| Fixing Solutions | Expansion screw, steel nail, weight plate, semi-permanent fixing, etc. |
| Wind load | 80-100km/h |
Optional Accessories:
Tent Accessories
-
Flooring Type -
Simple Wooden Flooring -
Carpet Floor -
Rolling Gate -
Sandwich Wall -
ABS Wall -
Glass Wall -
Double Glass Door -
Lighting -
Steel Panel Wall -
Tables & Chairs -
Tables & Chairs
